How Schrader Valve Air Flow Works and Why They’re Choking Your Compressor

Spoiler: It’s not your compressor’s fault. It’s those tiny tire holes.

Key Takeaways

• Most off‑road compressors can move far more air (CFM) than a single Schrader valve can pass.
• The small valve stem opening creates backpressure, heat and slow tire inflation.
• Multi‑tire inflation opens multiple valve stems at once, reducing restriction and using your compressor’s full airflow.
• MORRFlate 4‑tire hose kits and air chucks are designed to fully open the valve cores and distribute airflow across all four tires.

If your off-road air compressor feels slow, overheats or takes forever to air up your off‑road tires, the problem usually isn’t the compressor itself. It’s the tiny Schrader valve in each tire stem and the way most people inflate one tire at a time. In this guide, we’ll break down how valve stems work, how much airflow (CFM) they actually allow and how a 4‑tire inflation system removes that bottleneck.

When it comes to airing up after a day of crawling rocks, slinging mud, or blasting through desert dust, most people think their compressor is the MVP. But what if we told you the real MVP is something very different that helps solve a very small but very big problem?

Yep. We’re talking about a 4 tire hose kit to solve the issues that come with your tire's valve stems.

Those little metal nubs on your wheels are doing a lot more (or less) than you think and in most setups, they’re the ones holding your entire air system back. Let’s talk about how they work, why they're slowing down your inflating game and how the MORRFlate multi tire inflation system fixes the problem.

Schrader Valves 101: Small Hole, Big Problem

Most vehicles, from your overland rig to your grandma’s Prius use Schrader valves. A Schrader valve is a spring‑loaded tire valve with a small internal orifice that controls airflow into and out of the tire. Reliable? Sure. Because the opening is so small, it limits how much air (CFM) can pass through, even if your compressor can move more air. They were never designed to handle the high-volume airflow your Ten-Six off road air compressor is throwing down.

Schrader Valve Airflow Limits (CFM)

• Internal orifice diameter: ~0.23 inches
• Spring‑loaded valve core further restricts airflow
• Real‑world Schrader valve airflow: about 1.8–2.4 CFM (we’ll call it 2 CFM)
• A single tire valve = one tiny air passage for your whole compressor output

So when a high‑output off‑road air compressor like the MORRFlate Ten‑Six is rated at 10.6 CFM at 0 PSI and 6.5 CFM at 30 PSI, you’re literally trying to push 10+ CFM through a 2‑CFM Schrader valve. That mismatch is why inflation feels slow and why compressors run hotter than they should.

The Air Chuck Secret Sauce

Here’s where things get even more frustrating. Most off-the-shelf air chucks don’t fully open the Schrader valve. That means the 2 CFM max flow rate? It gets choked even more.

But not ours.
MORRFlate air chucks are one of the only chucks on the market that fully depress and open the valve core, meaning you’re getting every last bit of airflow that little valve can handle.

More flow means faster inflation and less strain on your air compressor.

Why One Tire at a Time Just Doesn’t Cut It

If you’re inflating one tire at a time, you’re doing your compressor dirty.

High-output compressors like the MORRFlate Ten-Six PSI Pro are built to move air fast. But when they’re forced to channel all that airflow through a single Schrader valve, backpressure builds up. That means:

• Longer inflation times

• Overheating compressors

• Increased wear and tear

• And a lot of standing around twiddling your thumbs

Imagine trying to blow up a pool float with a shop vac — but the float has a pinhole for an inlet. That’s the one-tire-at-a-time situation.

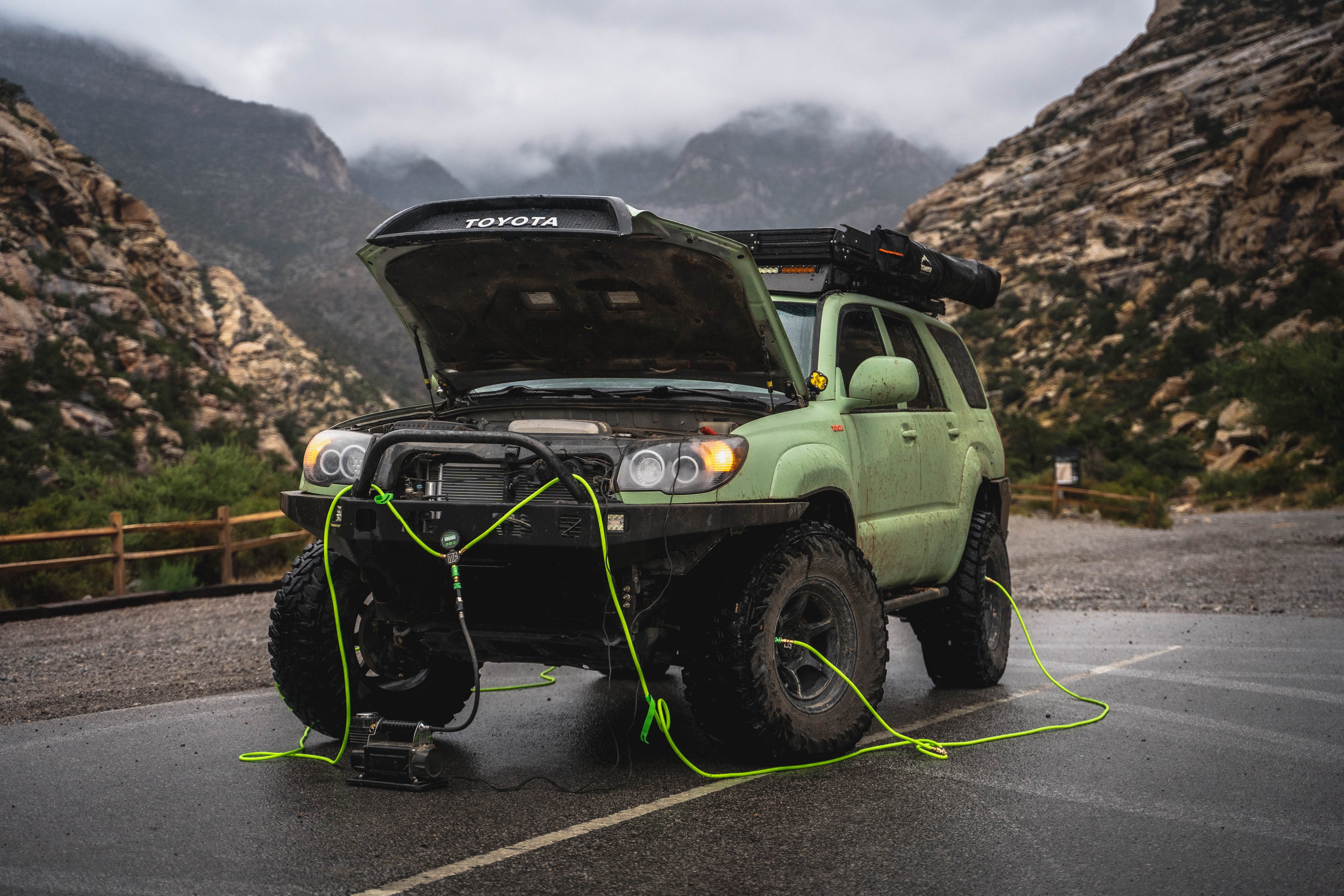

The MORRFlate Solution: 4-Tire Inflation Done Right

A multi‑tire inflation system like the MORRFlate 4‑tire hose kit connects all four valve stems at once. This effectively increases the total airflow path, reduces restriction at each tire and lets the compressor run closer to its rated CFM without overheating.

Benefits of Multi-Tire Inflation:

• Reduced strain on your compressor (lower working pressures = lower temps, higher duty cycles)

• Uses your compressor’s full airflow output (up to about 8CFM at 0 psi)

• No more uneven tire pressures

• Less waiting, more wheeling

• Hands-free operation so you can do literally anything else

You're not just saving time — you're multiplying performance. Four open valve stems allow more air to move with less resistance, meaning your compressor works smarter, not harder.

Don’t Forget: Deflation Too

It’s not just about airing up. Multi-tire deflation with MORRFlate means:

• Perfectly even tire pressures

• No crawling around to each tire

• No fiddling with screw-on deflators or pinching your fingers

• One simple valve to control it all

• No more accidentally deflating 1 tire more than the rest and having to pull out your air compressor to air it back up.

It’s efficient, it’s reliable, and it saves you time and energy every single trip.

TL;DR: It Ain’t the Compressor’s Fault

If your air system feels slow, clunky, or underwhelming and chances are, it’s not your compressor. It’s your setup.

• Schrader valves max out around 2 CFM

• Ten-Six compressors push up to 10.6 CFM

• Standard air chucks don’t fully open valve cores, MORRFlate air chucks do

• One tire at a time = inefficient

• Four tires at once = the way it's meant to be

Ready to Unleash Your Compressor?

Stop letting a 2-CFM valve choke out your 10-CFM compressor.

Upgrade to a MORRFlate 4-tire inflation and deflation kit, pair it with your Ten-Six, and let your setup finally breathe like it was built to.
